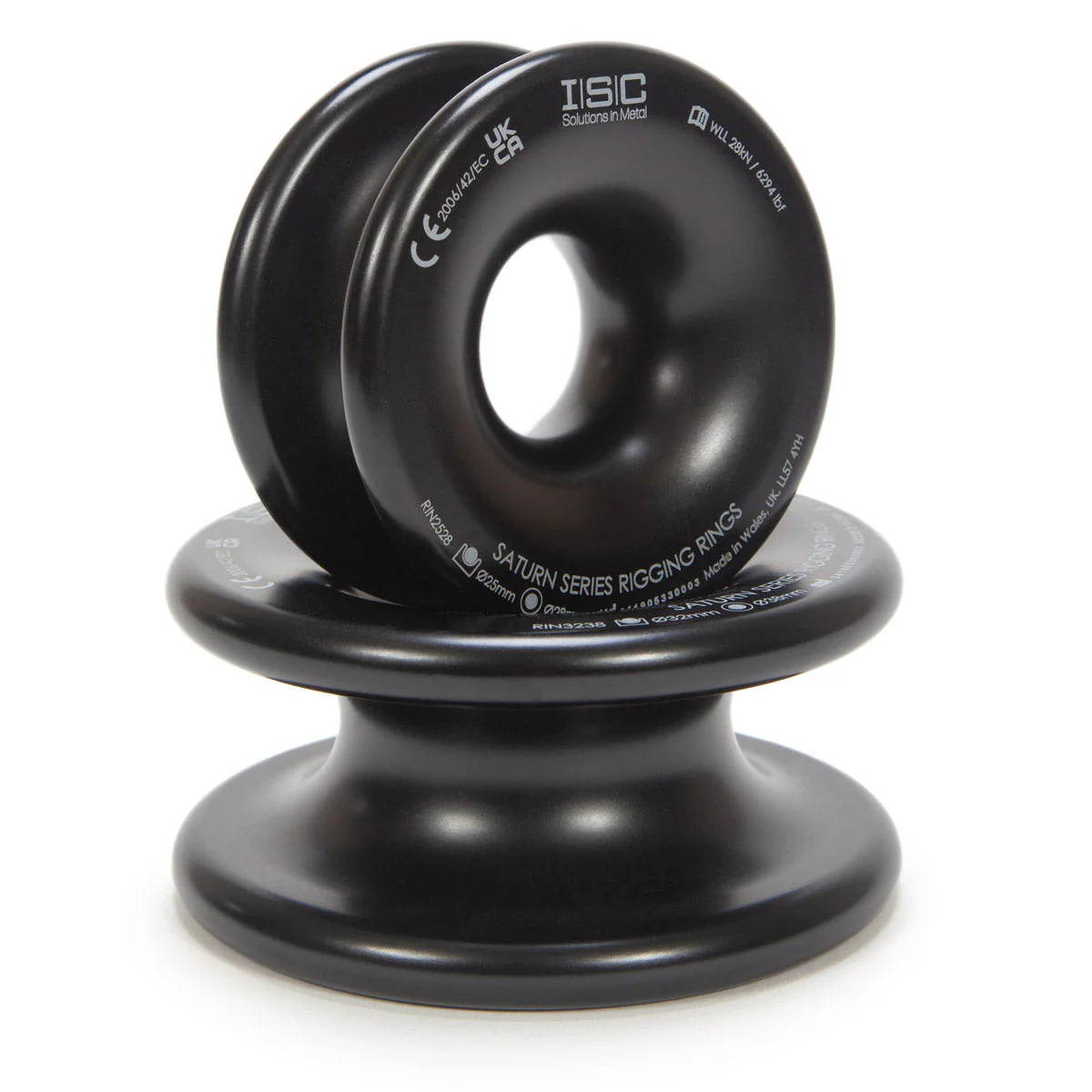

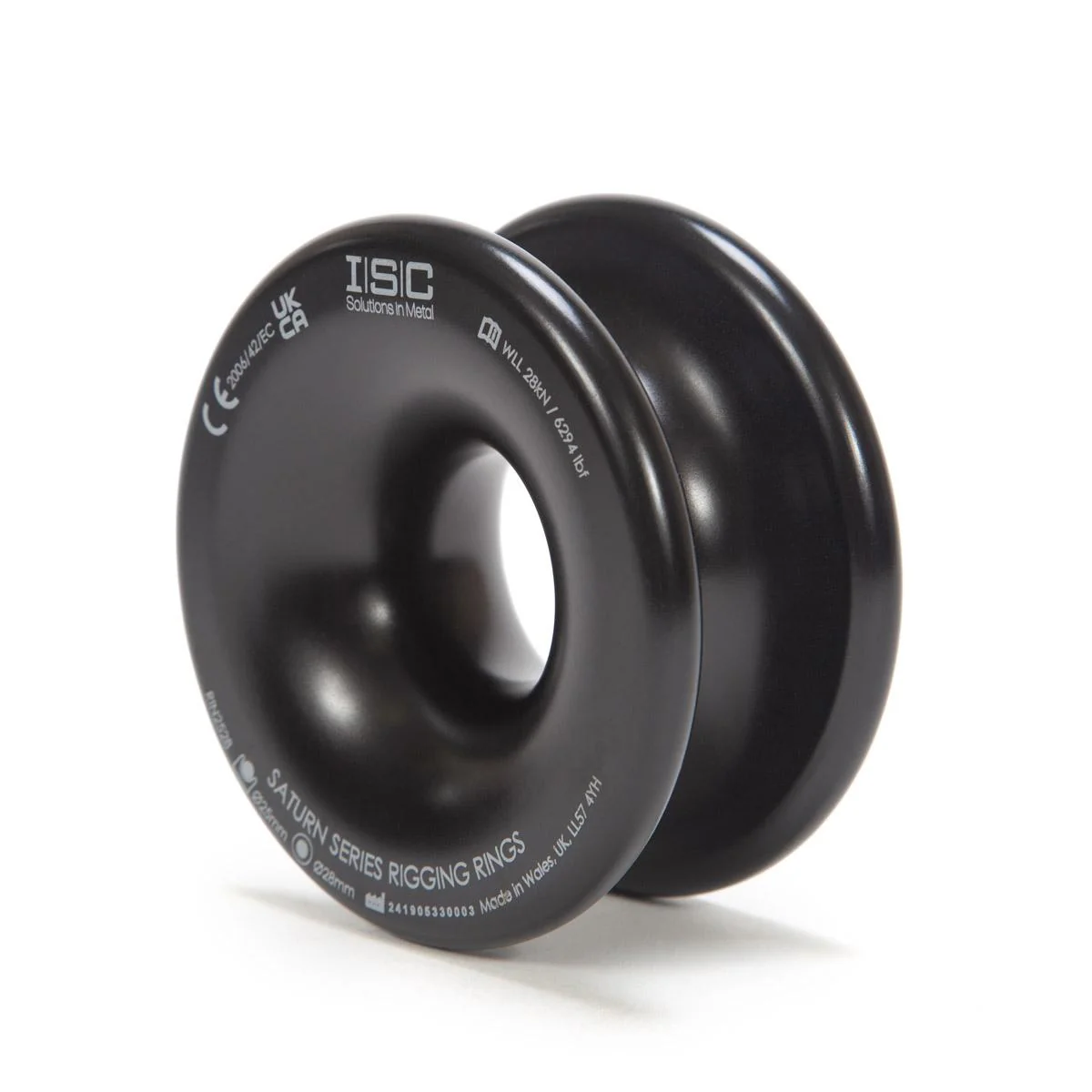

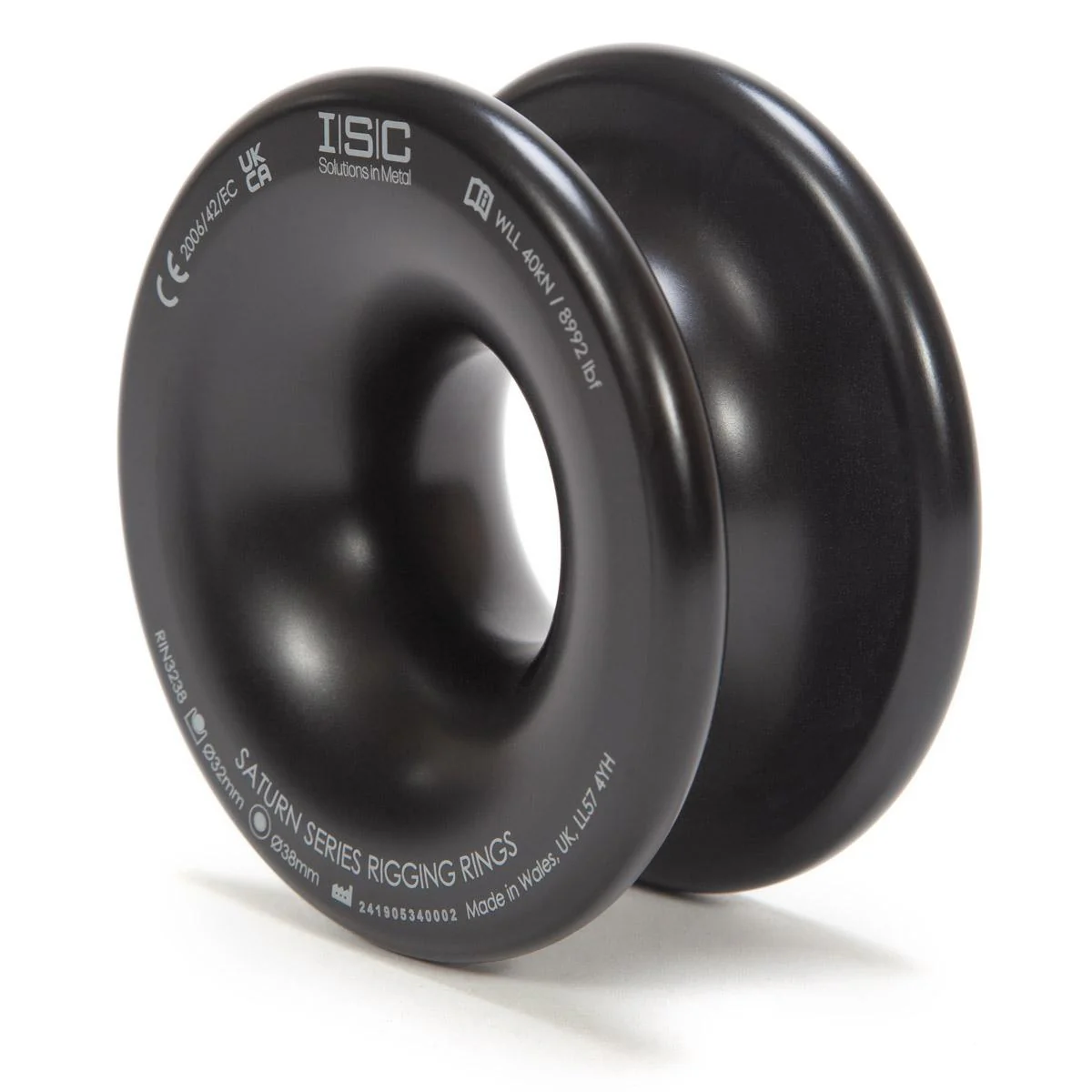

Saturn Series Rigging Ring - ISC
Experience ultimate durability and versatility with the SATURN Series Rigging Rings! Made from solid aluminum and featuring a smooth, low-friction finish, these rings can be spliced into anchor slings for customized redirects and tailored friction in your rigging system. Easy to inspect and low maintenance, these rings are a must-have for any rigging setup.
Technical Data
| SKU: | Small = 8574 Medium = 8575 |
| Overall Diameter: | Small = 88mm (3.5") Medium = 112mm (4.4") |
| Inner Diameter: | Small = 28mm (1.1") Medium = 38mm (1.5") |
| Grove Radius (Rope Path): | Small = 25mm (0.98") Medium = 32mm (1.25") |
| (WLL) Working Load Limit: | Small = 28kN (6,294lbf) Medium = 40kN (8,992lbf) |
| Weight: | Small = 10.6oz Medium = 20.8oz |
| Finish: | Hard Anodized |
Original: $47.87
-65%$47.87
$16.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Experience ultimate durability and versatility with the SATURN Series Rigging Rings! Made from solid aluminum and featuring a smooth, low-friction finish, these rings can be spliced into anchor slings for customized redirects and tailored friction in your rigging system. Easy to inspect and low maintenance, these rings are a must-have for any rigging setup.
Technical Data
| SKU: | Small = 8574 Medium = 8575 |
| Overall Diameter: | Small = 88mm (3.5") Medium = 112mm (4.4") |
| Inner Diameter: | Small = 28mm (1.1") Medium = 38mm (1.5") |
| Grove Radius (Rope Path): | Small = 25mm (0.98") Medium = 32mm (1.25") |
| (WLL) Working Load Limit: | Small = 28kN (6,294lbf) Medium = 40kN (8,992lbf) |
| Weight: | Small = 10.6oz Medium = 20.8oz |
| Finish: | Hard Anodized |
